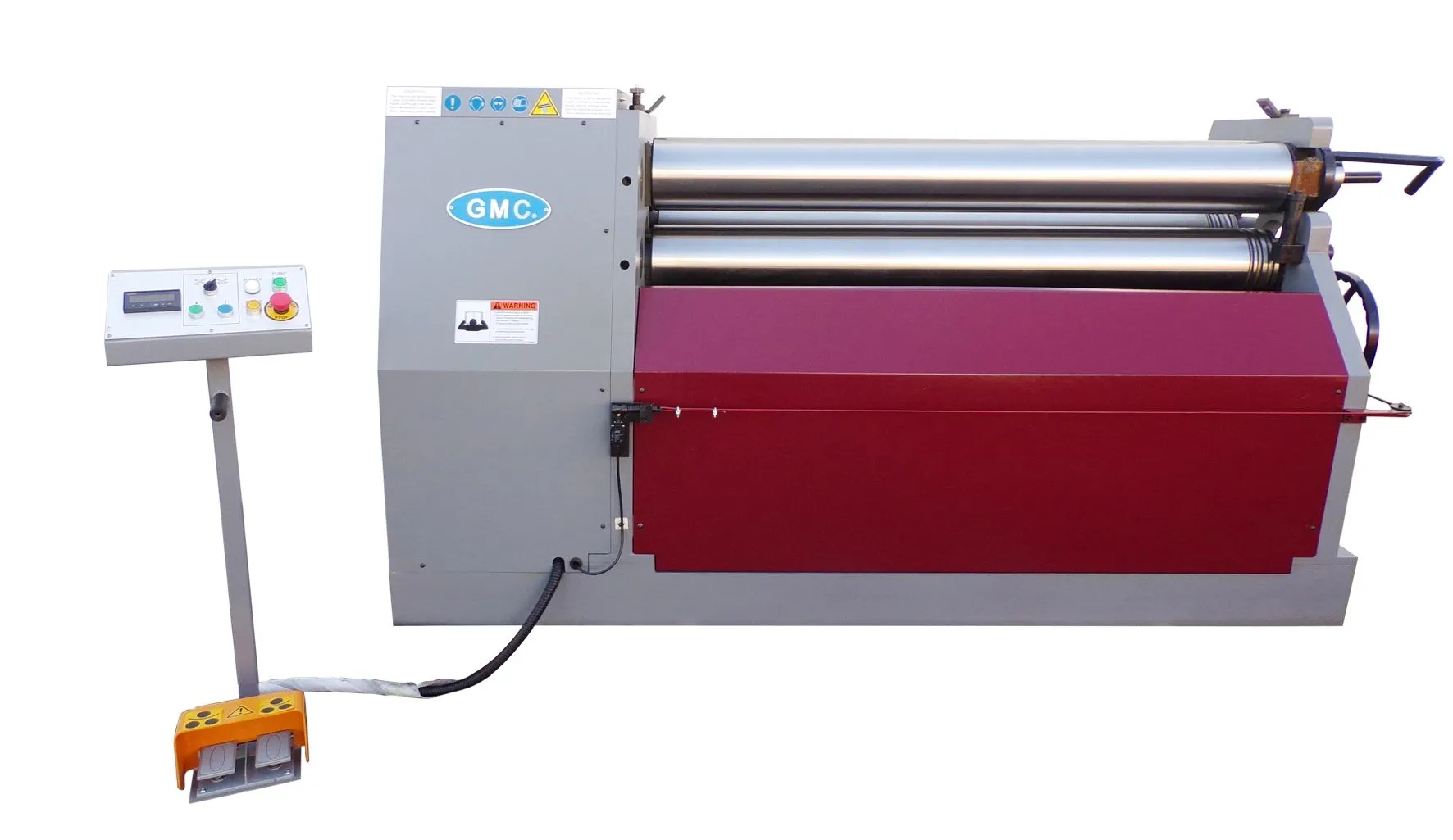

GMC POWER BENDING ROLLS 5 X 1/4 GA. Mfg. item #: HBR-0525
* (SHIPPING TO A BUSINESS ADDRESS WITH A WAY TO UNLOAD)
Features
-
ISO 9001 certified
-
Easy swing –out top roller
-
Standard cone attachment installed
-
1 each LED indicator for bending roll position
-
Safety line all around the machine for emergency stop
-
Heavy Duty all steel welded machine construction
-
German Hydraulic logic system centrally located and quiet
-
Bending roll is hydraulic powered up/down and tilting adjustment
-
Planetary reduction gear and pump
-
All three rolls run forward and reverse
-
Safety type foot pedal control
-
Overload protection and disconnect switch
-
Power source 208V/220V, or 460 V3 phase
-
One year industrial warranty for parts
-
Standard Equipment
-
Free cone attachment , factory installed
-
1 each LED indicator for bending roll position
-
Safety line all around the machine for emergency stop
-
Removable safety foot pedal
-
Tool box and leveling pads
Optional Equipment
-
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire # Groove
-
Variable rolling speeds # VRS-HBR-0625
SPECIFICATIONS
Model HBR-0425 HBR-0525 HBR-0625 HBR-06316 HBR-0810 HBR-0812 HBR-1010 HBR-1012 Roll capacity: Mild Steel 4’ x 1/4"
5’ x 1/4”
6’ x 1/4”
6’ x 3/16”
8’ x 10 Ga.
8’ x 12 Ga.
10’x 10 Ga.
10’x 12 Ga.
Stainless Steel 4’ x 3/16” 5’ x 3/16” 6’ x 3/16” 6’ x 11 Ga. 8’ x 14 Ga 8’ x 16 Ga. 10’x 14 Ga. 10’x 16 Ga Min.Roll Dia 7” 7-1/2” 8-1/2” 7-7/8” 7-1/2” 7” 7-7/8” 7-1/2” Other Specifications: Rolls length 4’3” 5’1”
6’ 8”
6’ 8"
8’4”
8’4”
10’
10’
Rolls Dia. 5-1/2” 6” 6-3/4”
6-1/4” 6” 5-1/2” 6-1/4” 6”
Pre-Bend 0.20” 0.20” 0.20” 0.18” 0.18” 0.16” 0.18” 0.16” Rolls speed 178” / min
178” / min
178” / min
178” / min
178” / min
178” / min
178” / min
178” / min
Rolls Opening 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” 3/8” Oil Tank Cap. 15 Gal 17 Gal. 30 Gal. 17 Gal. 20 Gal. 17 Gal. 20 Gal. 20 Gal. Main Motor 5 HP 5 HP 7-1/2 HP 5 HP 5 HP 5 HP 7-1/2 HP 5 HP Mach Weight 4,550 LBS 5,250 LBS 8,850 LBS 6,650 LBS 6,250 LBS 5,350 LBS 9,650 LBS 8,850 LBS Dimensions
91x36x56 103x36x56 126x36x56
126x36x56 146x36x56 146x36x56 166x39x56 166x39x56 -
